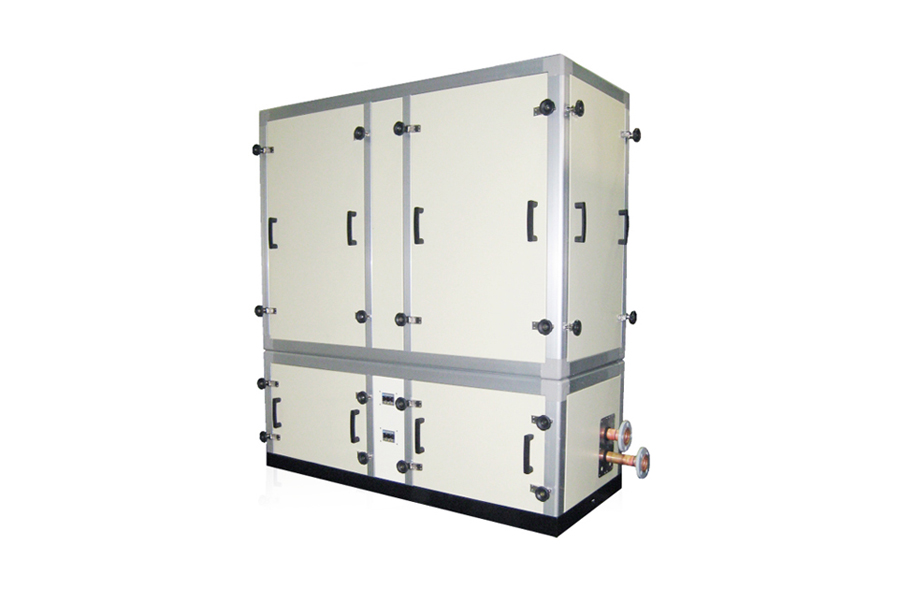

항온항습기

IT를 접목한 친환경 에너지 절약형 제품

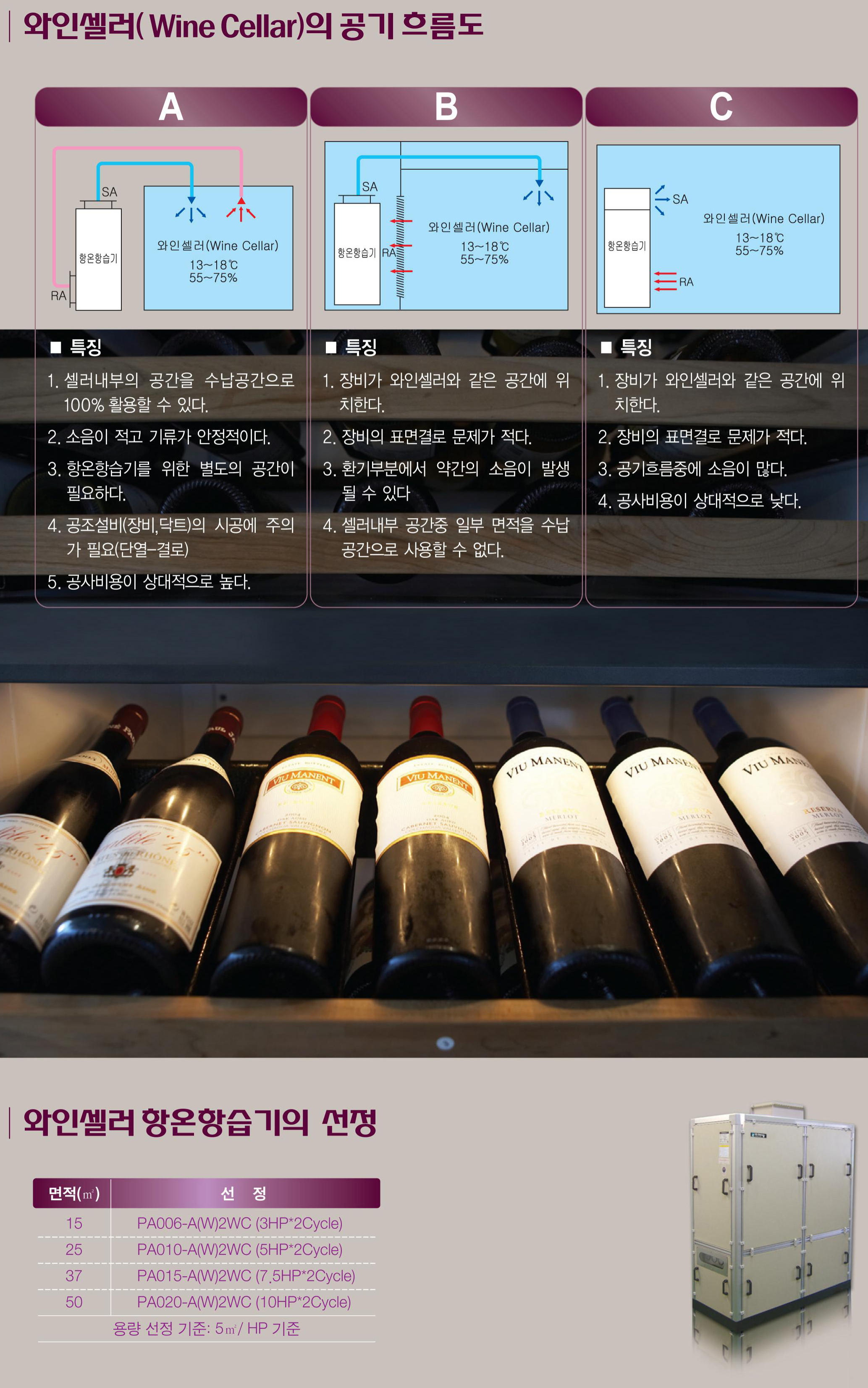

와인셀러 항온항습기
  • 공냉식 ㅣ Air Cooled Type
    표준사양 ㅣ Technical Data
    Section / Model Dual Type
    PA006-A2WC PA010-A2WC PA015-A2WC PA020-A2WC
    냉각능력 13℃, 60% Kcal/hr (ET 0℃) 13,180 23,840 37,000 50,500
    송풍기 Model AS-122Dx6Px1 AS-111Dx6Px2 AS-133Dx8Px2 AS-1512Dx8Px2
    Air Volume(CMM) 60 55x2 80x2 110x2
    Type Sirocco Fan Type
    Motor(kw) 1.56x1 1.18x2 1.037x2 1.65x2
    재열기 Kcal/hr 8,600 17,200 25,800 30,100
    Type Multi Pass Cross Finned Tube Type
    Cap.(KW) 10 20 30 35
    가습기 L/H 8 13 13 13
    Type 전자전극봉식
    Cap.(KW) 6.1 9.9 9.9 9.9
    압축기 Type Hermetic (Scroll)
    Power(kw) 2.11x2 3.79x2 6x2 7.5x2
    응축기 Air Volum(CMM) 68x2 120x2 200x2 220x2
    Fan Dia(mm) 450x2 550x2 500x4 550x4
    Motor(kw) 0.16x2 0.4x2 0.3x4 0.4x4
    배관구경(mm) Suction 15.88 19.05 25.40 28.57
    Discharge 12.70 15.88 19.05 19.05
    Liquid 9.50 12.70 12.70 15.88
    Water Supply 6.35 6.35 6.35 6.35
    Drain 25 25 25 25
    장비 사이즈 가로(W)x깊이(D)x높이(H) 1,600x700x1800 1,900x800x2000 2,200x1,000x2,380 2,200x1,100x2,380
    전력 사용량 Kw 21.64 39.78 55.5 67.5
    사용냉매 R-22 / R-407C
  • 표준사양 ㅣ Technical Data
    Section / Model Dual Type
    PA006-W2WC PA010-W2WC PA015-W2WC PA020-W2WC
    냉각능력 13℃, 60% Kcal/hr (ET 0℃) 13,180 23,840 37,000 50,500
    송풍기 Model AS-122Dx6Px1 AS-111Dx6Px2 AS-133Dx8Px2 AS-1512Dx8Px2
    Air Volume(CMM) 60 55x2 80x2 110x2
    Type Sirocco Fan Type
    Motor(kw) 1.56x1 1.18x2 1.037x2 1.65x2
    재열기 Kcal/hr 8,600 17,200 25,800 30,100
    Type Multi Pass Cross Finned Tube Type
    Cap.(KW) 10 20 30 35
    가습기 L/H 8 13 13 13
    Type 전자전극봉식
    Cap.(KW) 6.1 9.9 9.9 9.9
    압축기 Type Hermetic (Scroll)
    Power(kw) 2.11x2 3.79x2 6x2 7.5x2
    배관구경(mm) Suction 15.88 19.05 25.40 28.57
    Discharge 12.70 15.88 19.05 19.05
    Liquid 9.50 12.70 12.70 15.88
    Water Supply 6.35 6.35 6.35 6.35
    Drain 25 25 25 25
    Plumbing 40A 50A 50A 65A
    장비 사이즈 가로(W)x깊이(D)x높이(H) 1,600x700x1800 1,900x800x2000 2,200x1,000x2,380 2,200x1,100x2,380
    전력 사용량 Kw 21.32 38.98 54.3 65.9
    사용냉매 R-22 / R-407C
